Motif HTH (two copies)

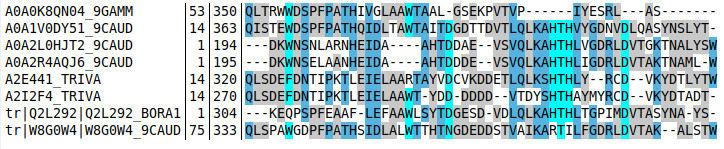

We took the complete sequences and aligned them:

_images/seqsAlignedHTH_2.png _images/seqsAlignedHTH_2Conservation.png

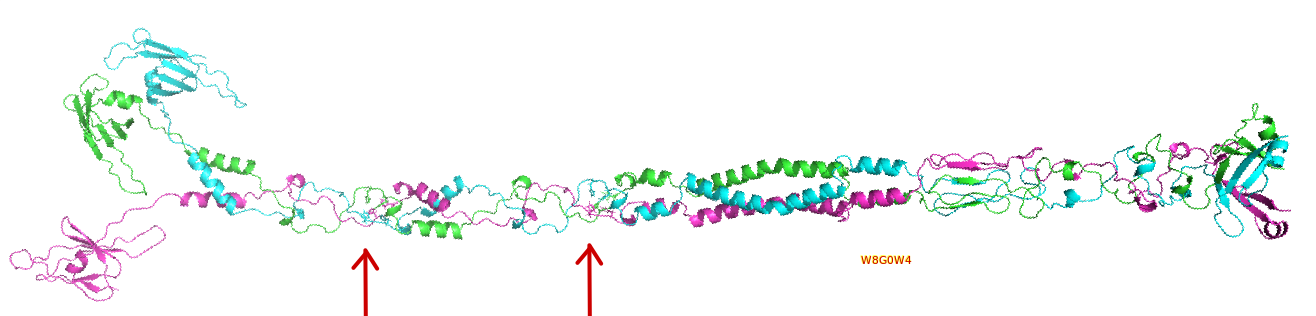

Alpha fold model W8G0W4

Interpro sequence information

Sequence:

>tr|W8G0W4|W8G0W4_9CAUD Minor tail protein OS=Mycobacterium phage Alsfro
MTVTITADVRDVTGQPDNQQWVFSTVLRQQDGSILTQKQVRVNPVDGALSVELEPGFAIV
VYGEYRWFIEVPEEDSQLWPLIASSVAFPPDSTADLIADTINGYLDLHPPAADWDGLIDV
PSEFPPEAHTHTSEDITDLDAAIADYLADNPPESSSVAWDDVTGKPATFTPSTHTHSIAN
VTGLQTALDEKLDEDAVDARVSLGTAALVDSAPDTLNTLNELASALGDDPNFATTVASQI
GAKADKARTITAGTGLTGGGDLTADRTLSVSFGTSSTTACVGNDSRLSNTRTPTDGSVTN
AKVASGAAIALSKLATGYVAGSDNSGARTLTIWVGTEAQYTAIGTKDSNTIYLRTA
_images/W8G0W4.png

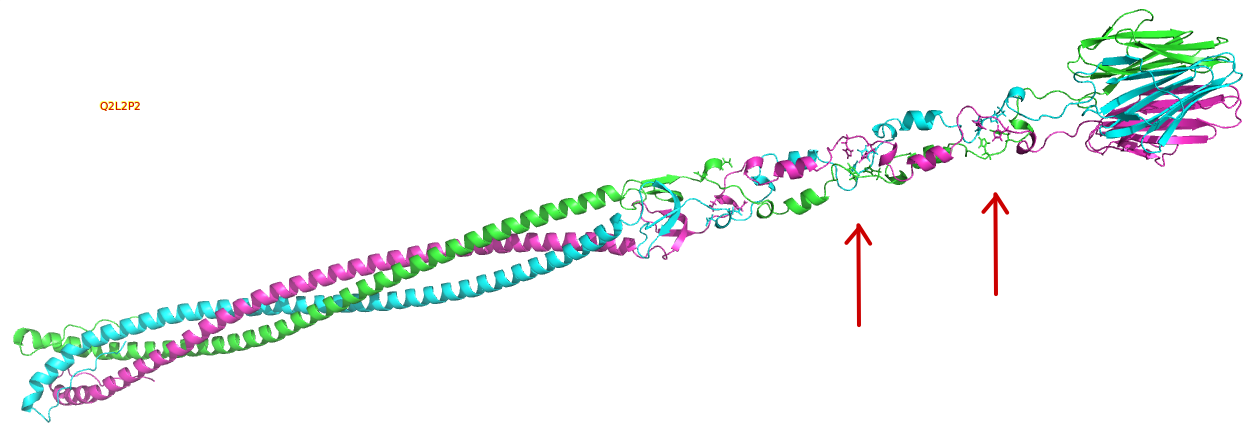

Alpha fold model Q2L2P2

Interpro sequence information

Sequence:

>tr|Q2L292|Q2L292_BORA1 Phage protein OS=Bordetella avium (strain 197N) OX=360910 GN=BAV1475 MEIKELPQPPSRSDPESFPERADAFLAALPEFAAQLNALAQRVGADKEVTSRGSASAASS EQAATAQALAAQQANAAAQTSANLAEQSAGYVQRAQSQIQAMLTQSTATLEQLQGVAQEG EQKWQQILDVARNASAAVSPGTYTKLTVDAKGWVIKGESLTDADLPNVTQGKVIGLSKAL DSKASSIHTHEIAQVDGLQSALNGKAATHHTHDWSQITGTPNSLGVGQTWQSVGRAANTT YTNTTGKPIMVHVQSSGDGSVTVASITINGQTLTSQSYNGRTASISAIVPNGMAYQVGGR PSMTVRELR

_images/Q2L2P2.png
